Introduction

Delivers efficient, stable, and secure data distribution and acceleration powered by P2P technology, with an optional content‑addressable filesystem that accelerates OCI container launch. It aims to provide a best‑practice, standards‑based solution for cloud‑native architectures, improving large‑scale delivery of files, container images, OCI artifacts, AI/ML models, caches, logs, dependencies, etc.

Features​

Here are some of the features that Dragonfly offers:

  • P2P technology: Based on P2P technology, use the idle bandwidth of Peer to improve download speed.
  • Non-intrusive: Non-intrusive support for multiple container runtimes, download tools, AI infrastructure, etc.
  • Peer configuration: Load limit, concurrent limit, traffic limit, etc. can be configured.
  • Consistency: Ensures downloaded files are consistent even if the user does not check for consistency.
  • Exception isolation: Isolate exceptions based on Service level, Peer level and Task level to improve download stability.
  • Ecosystem: Provides simple integration with AI infrastructure, container runtimes, container registry, download tools, etc.

features

Milestones​

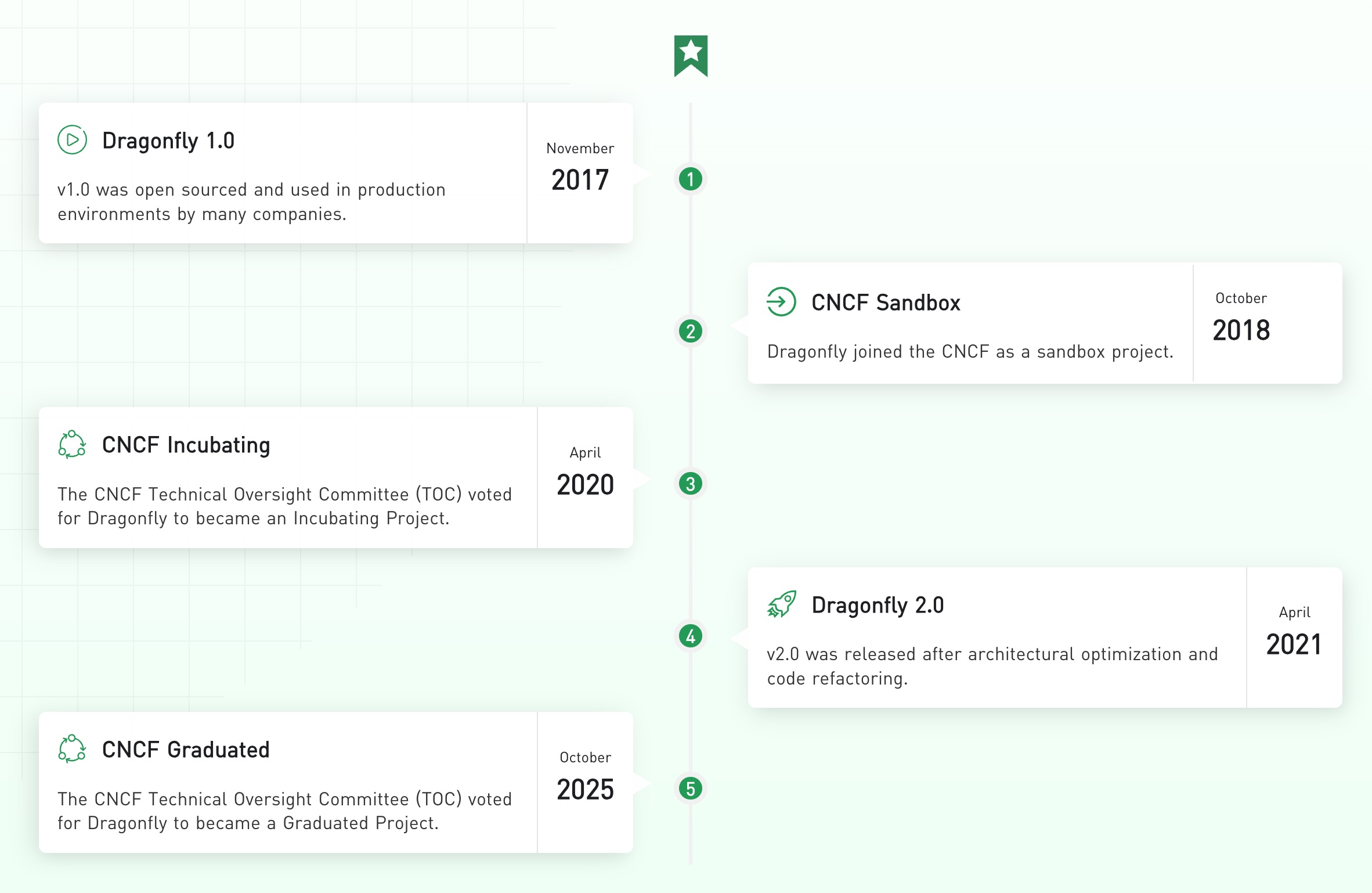

Dragonfly was accepted to CNCF on November 13, 2018, moved to the Incubating maturity level on April 9, 2020, and then moved to the Graduated maturity level on October 28, 2025.

milestone

Architecture​

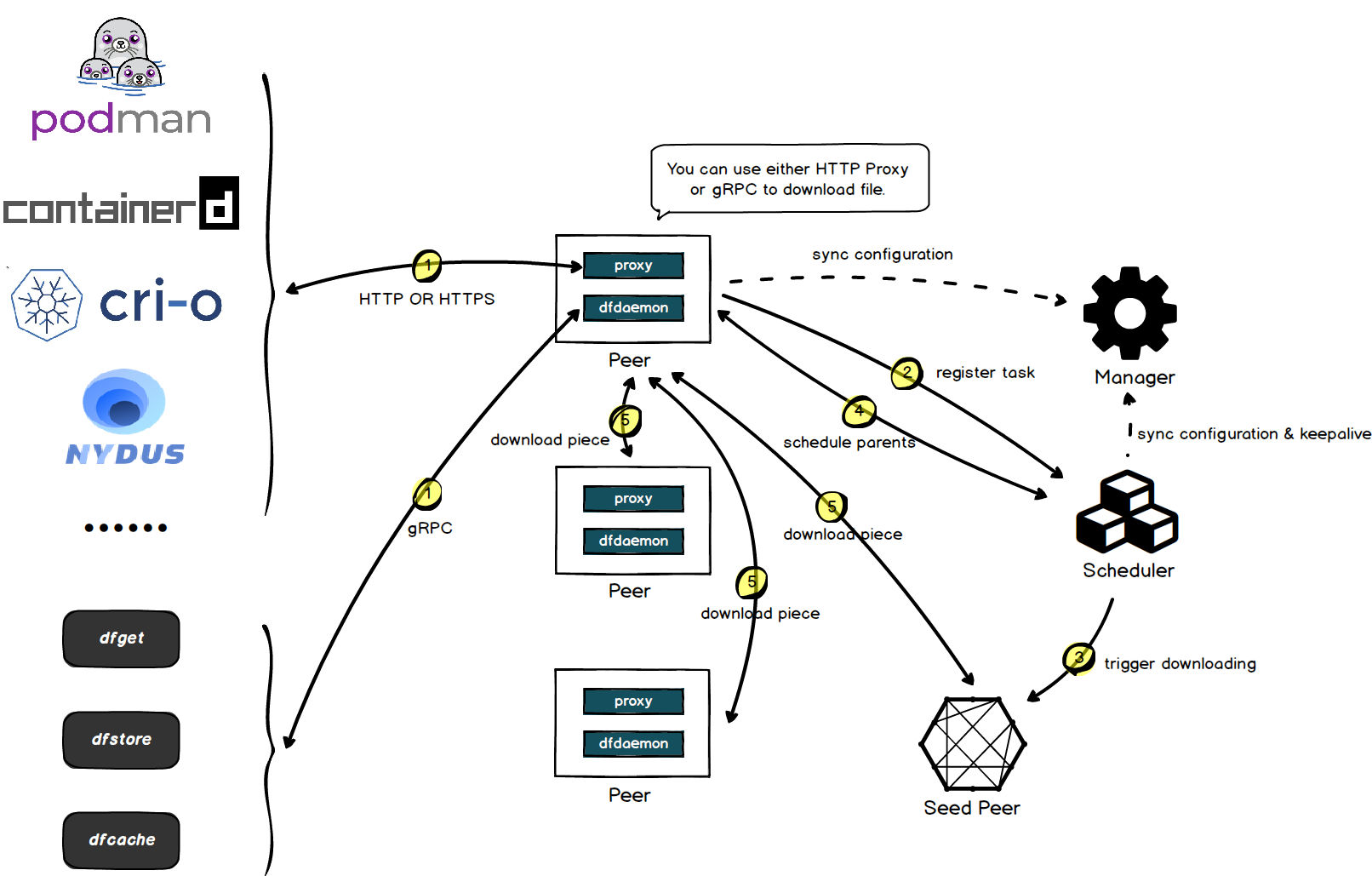

Dragonfly services could be divided into four categories: Manager, Scheduler, Seed Peer and Peer. Please refer to Architecture.

  • Manager: Maintain the relationship between each P2P cluster, It primarily offers functions such as dynamic configuration management and data collection. It also includes a front-end console, enabling users to visually operate and manage the cluster.
  • Scheduler: Select the best download parent node for the download node. At the appropriate time, trigger Seed Peer to perform back-to-source downloading, or Peer to perform back-to-source downloading.
  • Seed Peer: Provides upload and download functions and can serve as a root node in the P2P network, allowing the Scheduler to actively initiate back-to-source.
  • Peer: Provides upload and download functions.

arch

How it works​

When downloading an image or file, the download request is proxied to Dragonfly via the Peer HTTP Proxy. Peer will first register the Task with the Scheduler, and the Scheduler will check the Task metadata to determine whether the Task is downloaded for the first time in the P2P cluster. If this is the first time downloading, the Seed Peer will be triggered to download back-to-source, and the Task will be divided based on the piece level. After successful registration, The peer establishes a connection to the scheduler based on this task, and then schedule the Seed Peer to the Peer for streaming based on piece level. when a piece is successfully downloaded, the piece metadata will be reported to the Scheduler for next scheduling. If this is not the first time downloading, the Scheduler will schedule other Peers for the download. The Peer will download pieces from different Peers, splices and returns the entire file, then the P2P download is completed.

sequence-diagram
